Zeiss Batis 135mm f/2.8 review

April 5, 2017

Overall Rating:

5

Zeiss Batis 135mm f/2.8


Pros:

  • + Superb sharpness even at f/2.8
  • + Essentially no chromatic aberration
  • + Relatively low vignetting
  • + Fast, silent, accurate autofocus
  • + Solid, weather-sealed construction

Cons:

  • - Visible pincushion distortion
  • - Very expensive for an f/2.8 prime

Manufacturer:

Manufacturer:

Price as Reviewed:

£1,749.00

Tags:

Is this new portrait lens for the Sony Alpha 7 series worth its stratospheric price, asks Andy Westlake

Sponsored by CameraWorld

Looking to upgrade? Our Trade-In and Purchase Service is one of the best in the industry. We buy all sorts of equipment and make that upgrade much easier than you may think. Visit www.cameraworld.co.uk/trade-in for a quote.

Zeiss Batis 135mm f/2.8 Review: Test results

In our Applied Imaging lens tests, we used the Zeiss Batis 135mm f/2.8 on the 42.4MP Sony Alpha 7R II.

Resolution

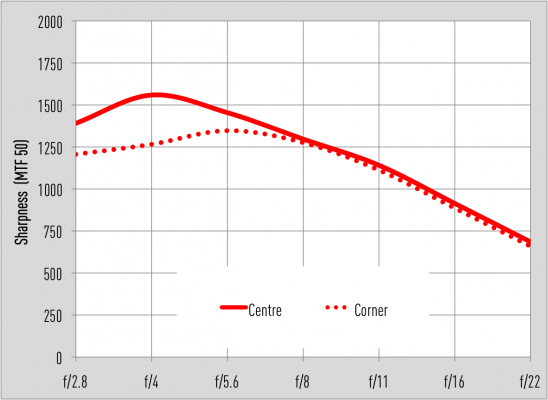

Zeiss batis 135mm f/2.8: MTF50 (lp/ph) for centre and corners vs aperture

Central sharpness is exceptional even at f/2.8, but the corners really aren’t too far behind. Stopping down to f/4 gives peak central sharpness, while the corners reach their best at f/5.6. At f/8 the lens gives uniformly excellent results from corner to corner, but at smaller apertures diffraction progressively softens the image.

Curvilinear Distortion

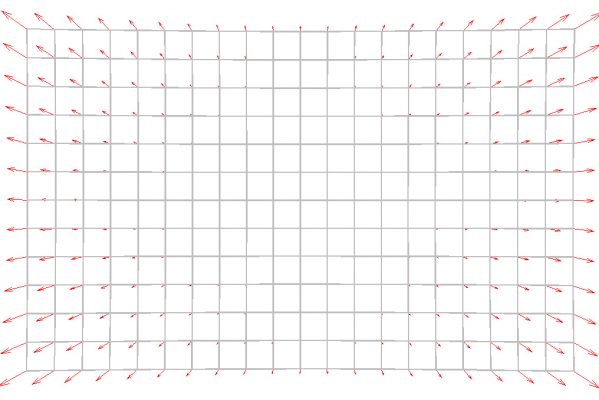

Zeiss Batis 135mm f/2.8 distortion: SMIA TV = 1.3%

In the nearest thing the Batis has to a flaw, pincushion distortion is plainly visible in our chart tests when we look at uncorrected raw files. Turn on in-camera lens corrections (or use profiled lens corrections in raw processing) and this disappears at a stroke, to give perfectly corrected images.

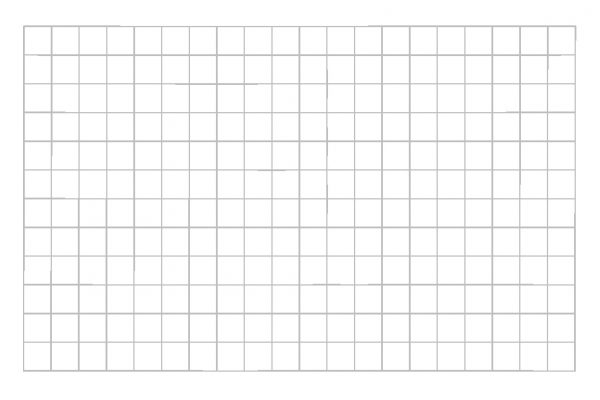

Zeiss Batis 135mm f/2.8 distortion: Corrected JPEG. SMIA TV = 0.1%

Shading

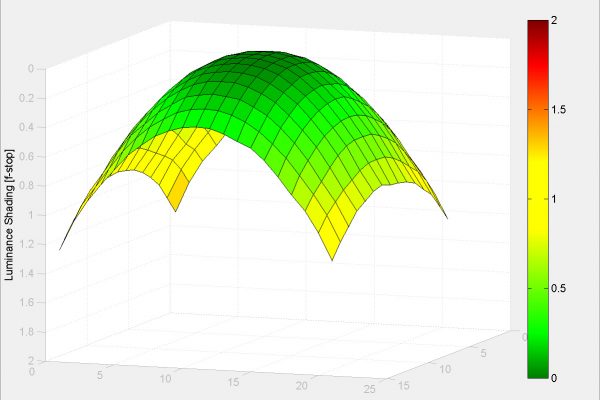

Zeiss Batis 135mm f/2.8: Vignetting at f/2.8

With its relatively large front element, vignetting is far from severe, with less than 1.3 stops falloff in illumination at the corners with the aperture set to f/2.8. Stopping down to f/4 reduces this significantly, and by f/5.6 there’s just a negligible amount of residual vignetting in the corners of the frame.

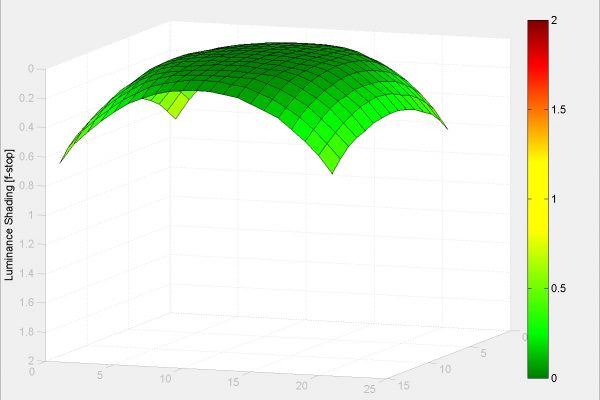

Zeiss Batis 135mm f/2.8: Vignetting at f/4

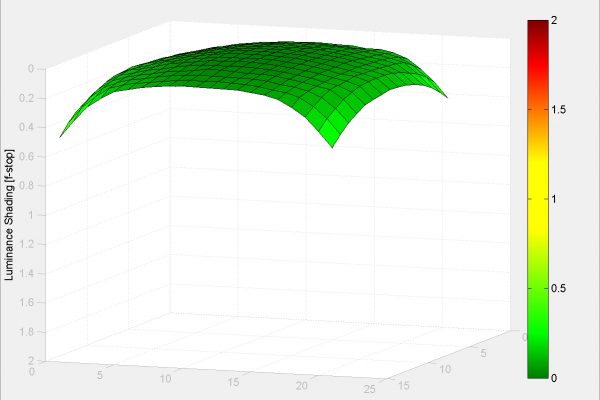

Zeiss Batis 135mm f/2.8: Vignetting at f/5.6

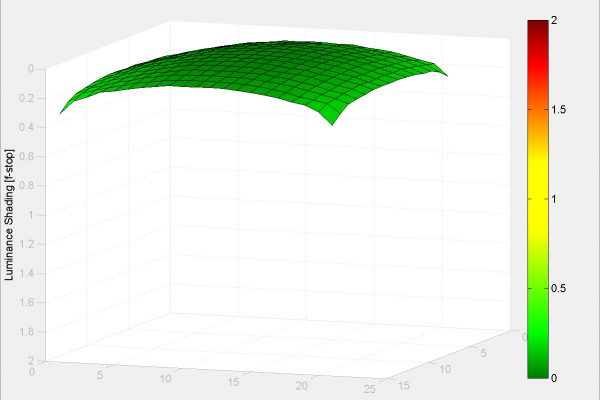

Zeiss Batis 135mm f/2.8: Vignetting at f/8

  • Image format: Full frame
  • Filter Diameter: 67mm
  • Lens design: 14 elements in 12 groups
  • Diaphragm blades: 9
  • Aperture range: f/2.8-f/22
  • Minimum focus: 87cm
  • Length: 120mm
  • Diameter: 84mm
  • Weight: 614g
  • Lens mount: Sony E
