Olympus OM-D E-M10 II review

April 10, 2017

Overall Rating:


Olympus O-MD E-M10 II


  • Compact and well-built body
  • Effective image-stabilisation system
  • Large and detailed EVF


  • Noise and noise-reduction artefacts
  • Easy to knock command dials out of position
  • Mediocre kit-lens performance



Price as Reviewed:

£550.00 (body only (at time of review))

The Olympus OM-D E-M10 Mark II refreshes its predecessor with a range of improvements. Matt Golowczynski investigates the difference these make


Olympus OM-D E-M10 II review: Resolution, dynamic range and noise

Dynamic Range

The sensor may be smaller than APS-C types in rival cameras but it still manages to hold its own in terms of dynamic range, recording an impressive 12.7EV stops at ISO 100 in our Applied Imaging tests. This holds up well until around ISO 400 where it falls to a still respectable 11.8EV stops, after which point it steadily decreases. We see a quite usable 7.9EV dynamic range at
ISO 3200, but beyond this the sensor performs more poorly, even dipping
to below 6EV at ISO 25,600.

Olympus OM-D E-M10 II Dynamic Range Chart


While the camera may lack the 40MP High Res Shot mode found in the E-M5 Mark II – which we found is capable of resolving around 4,000lp/h – the level of detail captured is still impressive. At ISO 100 it manages around 3,000l/ph,
a figure which holds up well until ISO 800 at least. ISO 3,200 is where things begin to tail off noticeably, from 2,800l/ph captured at this setting, before more consistent drops in resolution with each subsequent sensitivity setting until the camera’s upper limit of ISO 25,600.

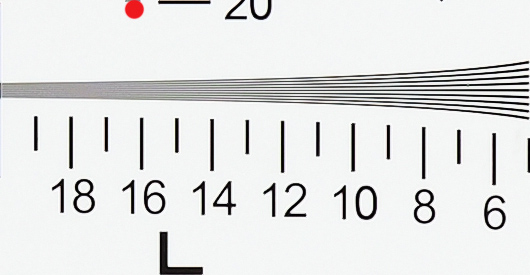

Olympus OM-D E-M10 II Resolution Chart ISO 100

ISO 100

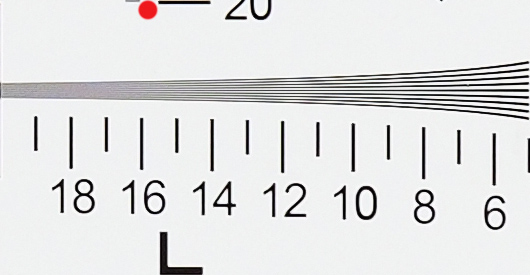

Olympus OM-D E-M10 II Review Resolution Chart ISO 400

ISO 400

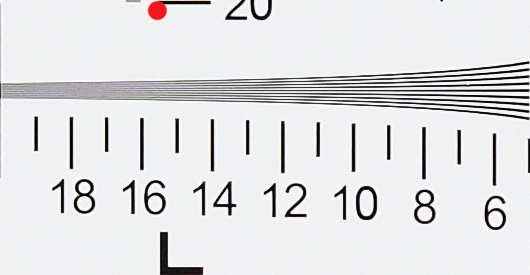

Olympus OM-D E-M10 II Review Resolution Chart ISO 800

ISO 800

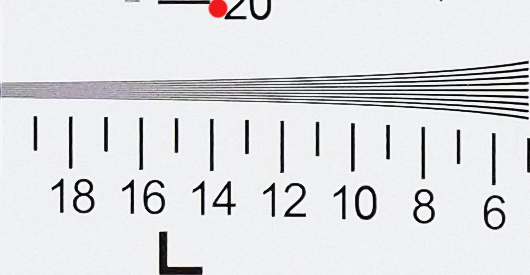

Olympus OM-D E-M10 II Review Resolution Chart ISO 3200

ISO 3200

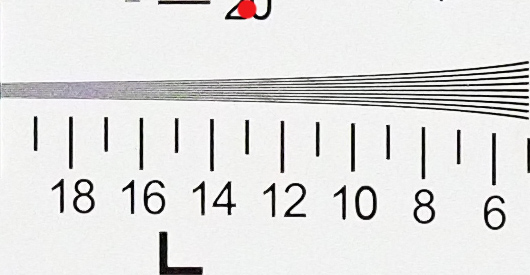

Olympus OM-D E-M10 II Review Resolution Chart ISO 6400

ISO 6400


Noise is visible slightly earlier in the camera’s sensitivity range than similar systems toting APS-C sensors, but good results can still be had at the lower end of the sensitivity range. Noise begins to become more visible at around ISO 800, with luminance noise becoming increasingly obvious as you push towards ISO 3,200. Detail is well preserved up to ISO 1,600, beyond which it slowly starts to tail off – something you only really notice when you’re studying images at high magnification. For day-to-day use and in low-light scenes that demand a higher sensitivity I’d be prepared to push the sensitivity up to ISO 3,200 without too much cause for concern. As is often the case, it’s the last sensitivity in the range that appears to show the most significant shift. In an emergency, I’d be prepared to shoot at ISO 6,400 or 12,800, but ISO 25,600 should be avoided at all costs.

  • Sensor: 16.1-million-pixel, Four Thirds Live MOS sensor
  • Output size: 4608 x 3456
  • Focal length mag: 2x
  • Lens mount: Micro Four Thirds
  • Shutter speeds: 60sec-1/4000, bulb; 1/16,000 with electronic shutter
  • ISO: 100‑25600 (extended)
  • Exposure modes: PASM, iAuto, Scene, Art Filters
  • Metering: Multi, average, spot, highlight spot, shadow spot
  • Exposure compensation: +/‑ 5 EV in 1EV, 1/2EV or 1/3EV steps
  • Continuous shot: 8.5fps
  • Video: Full HD, built-in stereo mic
  • Touchscreen: 3in, 1.04M-dot fully-articulated touchscreen
  • Viewfinder: 2.36M-dot EVF, 100% coverage, 1.23x magnification
  • External mic: No
  • AF points: 81-point contrast-detect
  • Memory card: SDHC, SDXC
  • Power: BLS-50 rechargeable Li-Ion
  • Battery life: Approx. 320 images
  • Dimensions: 119.5 x 83.1 x 46.7mm
  • Weight: 390g with battery and card
