Andy Westlake puts Olympus’s super-fast mirrorless flagship camera through its paces

Olympus OM-D E-M1 Mark II review: High-resolution composite mode

25MP High resolution composite mode. 1/1000sec f/4.5 ISO 200. M.Zuiko Digital ED 12-100mm f/4 Pro

25MP High resolution composite mode. 1/1000sec f/4.5 ISO 200. M.Zuiko Digital ED 12-100mm f/4 Pro

Like other recent Olympus cameras, the E-M1 II comes with a multi-shot high-resolution composite mode. This takes eight exposures, using the in-body stabilisation system to move the sensor fractionally between each to build up a more detailed view of the scene, including full colour sampling at each pixel location. As before, the camera has to be locked on a tripod for this to work.

The process takes a second or so to shoot, then about 12 more to generate the composite output. JPEG files can be output at either 25MP or 50MP resolution, while raw files take up around 64MB (a conventional 20MP single-shot raw is also recorded with an ORI extension). New on this model is the ability to compensate for subjects that move between exposures, which previously gave unsightly ghosting artefacts; now they’re rendered with a more natural-looking blur.

When the stars align, with a sharp lens and nothing to move the camera or subject, high-res composite gives stunning levels of detail, easily sufficient to print up to A2 in size (16x24in). But if you’re only making A3 prints, the benefits are less clear-cut. But even the 25MP composite JPEGs can show more fine detail, and distinctly less colour moiré than the standard 20MP output.

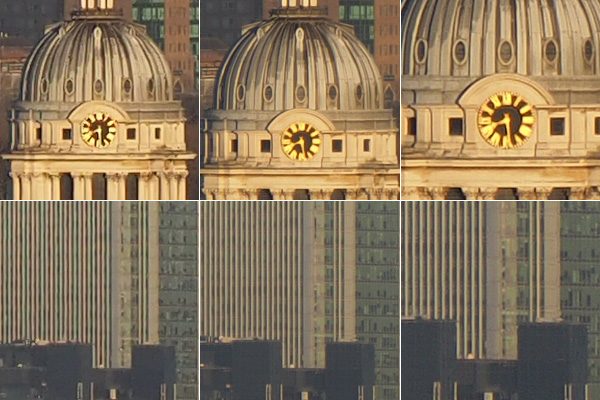

Olympus OM-D E-M1 Mark II high resolution composite comparison: 20MP vs 25MP vs 50MP

Olympus OM-D E-M1 Mark II high resolution composite comparison: 20MP vs 25MP vs 50MP

The crops above illustrate what the mode can do. The 25Mp high resolution composite shot is clearly better than the standard 20MP single-shot version: fine detail is rendered much more convincingly, and moire is effectively eliminated. The 50MP version is even better, but you’d have to be printing very large indeed to see the difference.

  • Sensor: 20-million-pixel Four Thirds CMOS
  • Output size: 5184 x 3188
  • Lens mount: Micro Four Thirds
  • Focal length magnification: 2x
  • Shutter speeds (mechanical): 60sec - 1/8000sec + Bulb
  • Shutter speeds (electronic): 60sec - 1/32000sec + Bulb
  • ISO sensitivity: ISO 200-25,600 (standard), extendable to ISO 64
  • Exposure modes: PASM, iAuto, Art, Movie
  • Metering modes: Pattern, centre weighted, spot, spot highlight, spot shadow
  • Exposure compensation: +/-5EV in 1/3 EV steps
  • Continuous shooting (mechanical shutter): 15fps (focus fixed); 10fps with AF
  • Continuous shooting (electronic shutter): 60fps (focus fixed); 18fps with AF
  • Screen: 3in 1.-037-million-dot fully-articulated touschscreen
  • Viewfinder: 2.36-million-dot, 0.74x magnification
  • AF points: 121-point
  • Video: Cinema 4K (4094 x 2160) 25fps 237Mbps
  • External mic: 3.5mm stereo
  • Memory card: 2x SD, SDHC, SDXC (1 UHS-II compatible)
  • Power: BLH-1 Li-ion, 1720 mAh
  • Battery life: 440 shots
  • Dimensions: 134 x 91 x 67 mm
  • Weight: 574g (including battery and card)
