Michael Topham finds out if the EOS 760D justify its higher price and is it the best choice for aspiring enthusiasts

Product Overview

Overall rating:

Canon EOS 760D

Features:
Build/Handling:
Metering:
Autofocus:
AWB Colour:
Dynamic Range:
LCD viewfinder:

Pros:

  • + 19 all cross type AF points for accurate subject tracking
  • + Wi-Fi and NFC connectivity for easy sharing and transfer
  • + Extremely responsive 3in, 1040k-dot Vari-angle touchscreen

Cons:

  • - Viewfinder doesn’t provide 100% frame coverage
  • - Doesn’t accept the 700D’s LP-E8 battery
  • - No weather sealing
  • - No Wi-Fi button on the body

Product:

Canon EOS 760D Review

Manufacturer:

Price as reviewed:

£649.00 (Body Only)

Latest deal

Loading
TAGS:

Canon EOS 760D at a glance:

  • 24.2-million pixel APS-C CMOS sensor
  • ISO 100-12,800 (extendable to ISO 25,600)
  • 30 – 1/4000 sec shutter speed
  • 3in, 1,040k-dot LCD monitor
  • 5fps continuous shooting
  • £649 (body only)

When Canon unveiled the EOS 750D and EOS 760D earlier in the year there were many, myself included, who struggled to get their head around why a manufacturer would go to the effort of creating two models so similar with a near-identical specifications. For those who remain unsure of the differences, the EOS 750D is targeted at people new to the EOS system, such as those stepping up from a more basic compact or a smartphone who want greater flexibility and more manual control, whereas the EOS 760D is aimed at aspiring enthusiasts who are much surer of what they want.

The thought process behind creating two similar models with the virtually identical specifications but different designs ultimately gives the consumer better choice and underlines Canon’s ethos of making sure there’s a DSLR in the EOS system that’s suitable for everyone. Given that the EOS 700D is also continuing in Canon’s range, there are no fewer than four DSLRs that sit beneath the EOS 760D, so the range of cameras for those taking their first steps into DSLR photography has never been better. Having already reviewed the EOS 750D, it’s time to find out how the 760D compares and whether it’s Canon’s best three-digit DSLR to date.

A front view of the Canon EOS 760D clearly showing the mode dial on the top corner of the body

A front view of the Canon EOS 760D clearly showing the mode dial on the top corner of the body

Canon EOS 760D Review – Features

Just like the 750D, the 760D features a 24.2-million-pixel APS-C CMOS sensor that has a higher pixel count than the 18-million-pixel sensor that’s found within the two-year-old EOS 700D. Despite the jump up in resolution, the new sensor provides the same standard sensitivity range of ISO 100-12,800, with an extended ISO 25,600 setting also available.

To ensure the 760D is capable of processing its higher resolution files as fast as possible, Canon has paired the new chip with its latest DIGIC 6 image processor, allowing it to shoot a continuous burst at up to 5fps. Despite this being no faster than the speed the EOS 700D shoots at, the burst depth has seen a significant improvement and where it was previously possible to rattle off 22 JPEGs or six raw files at 5fps on the 700D, it’s now possible to shoot 940 JPEGs or up to eight raw files consecutively on the 760D. To offer a comparison, the 760D’s closest rival – the Nikon D5500 – also shoots at 5fps.

For some time now we’ve got used to Canon rolling out beginner DSLRs with a nine-point diamond formation AF system, so it’s refreshing to see the EOS 760D offering a more sophisticated 19-point all-cross-type autofocus system. This is the same AF system as found on the EOS 750D and the arrangement of AF points, combined with a working range of -0.5EV to 18EV is identical to Canon’s more advanced EOS 70D.

When shooting in live view, the EOS 760D features the same Hybrid CMOS AF III system as the EOS M3, rather than Canon’s Dual Pixel CMOS AF technology that’s used in the EOS 70D. It’s a system that Canon claims is close to the speed of Dual Pixel AF and it uses sensor-based phase detection points to enhance focus speed in live view when shooting stills and recording video.

IMG_0107

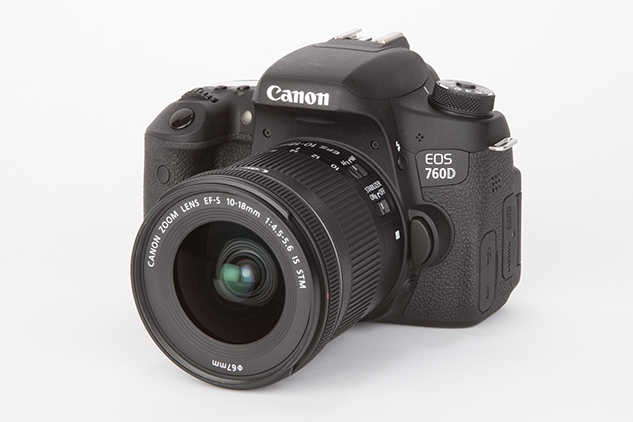

The EOS 760D’s dimensions are virtually identical to the EOS 750D

On the topic of video, flicking the on/off switch all the way to the right enters the 760D’s video mode and here the maximum native sensitivity setting is ISO 6400, expandable to ISO 12,800. Much like the 750D, full HD video (1920 x 1080) is captured at 30, 25 or 24fps. There’s a 3.5mm mic port at the side of the camera, with the option to control sound levels manually. Lowering the resolution to 1280×720 also allows you to shoot at 60, 50 or 30fps if preferred.

At the rear of the 760D, the optical viewfinder reveals 95% coverage of the frame with a magnification of 0.82x. Unlike the 750D, a small electronic level icon can be switched on within the menu to ensure horizons aren’t captured askew. Beneath the viewfinder, Canon has opted to keep the same 3-inch touch sensitive Clear View II TFT screen that impressed us on the 700D and is also featured on the 750D. This offers a resolution of 1040k-dots and displays in the 3:2 aspect to match the aspect ratio of the imaging sensor. The 760D also improves upon the 700D in other areas, notably its 7560-pixel metering sensor that’s more sensitive to red, green, blue and infrared light. To further improve exposure accuracy, the metering is linked to the selected AF points in evaluative mode, with partial (6% of viewfinder), spot (3.5% of viewfinder) and centreweighted modes all available.

IMG_0133

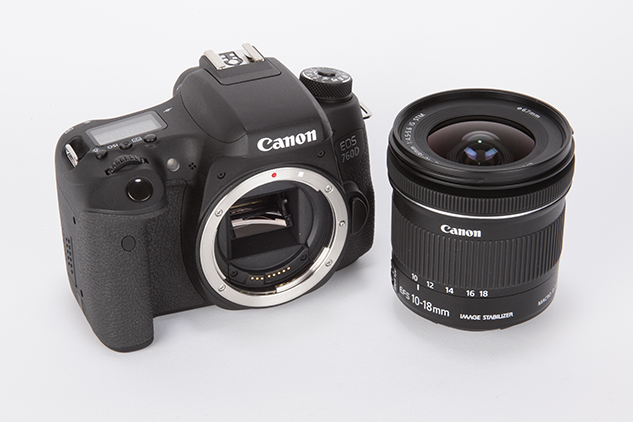

The EOS 760D with the inexpensive EF-S 10-18mm f/4.5-5.6 IS STM wide-angle lens positioned alongside

Other features include a shutter range of 30-1/4000sec, +/-5EV exposure compensation control, and a small pop up flash that has a guide number of 12m @ ISO 100. It accepts the LP-E17 battery, which provides a battery life of up to 440 shots on a single charge and there’s a battery grip available (the GB-E18), which is also compatible with the 750D.

To satisfy those who’d like to control the camera wirelessly, as well as those who want to share images to mobile devices, the 760D comes Wi-Fi and NFC equipped. The camera’s wireless connectivity ties in well with Canon’s Camera Connect app that’s free to download via the App Store for iOS devices or Google Play for Android. As we discovered while testing the 750D, it’s one of the better apps out there and lets you transfer images quickly, offers AF point adjustment directly from a separate device’s screen, as well as control of key exposure settings.
