The Olympus OM-D E-M5 Mark II may at first glance look similar to its predecessor, but it's a very different camera underneath. Andy Westlake examines it in fine detail in our Olympus OM-D E-M5 Mark II review

Product Overview

Overall rating:

Olympus OM-D E-M5 Mark II

Metering:
Autofocus:
Features:
LCD viewfinder:
Build/Handling:
AWB Colour:
Dynamic Range:

Pros:

  • - Excellent JPEG image quality
  • - Fast, responsive operation
  • - Robust, weather-resistant body
  • - Almost all controls can be customised to suit the user

Cons:

  • - Complex menus are difficult to master
  • - Connectors interfere with articulated screen
  • - Raw image quality can't quite match larger sensor cameras

Product:

Olympus OM-D E-M5 Mark II review

Manufacturer:

Price as reviewed:

£899.00 (body only)

Latest deal

Loading
TAGS:

Image quality

The Olympus OM-D E-M5 Mark II uses a 16-million-pixel Four Thirds sensor, which is basically the same as the one used in the E-M5 three years ago. This means that it can’t technically match its APS-C competitors, particularly for noise at any given ISO. It gives good results up to ISO1600, but ISO 3200 is marginal, and the higher settings for use only when there’s no other choice. However the new 40-million-pixel High Res Shot mode is very impressive indeed, giving both excellent resolution and low noise. Photographers who shoot JPEGs will also appreciate Olympus’s attractive colour rendition.

Resolution

The E-M5 Mark II resolves around 3400 l/ph at ISO 100 in our resolution tests, which is close the theoretical maximum its 16MP sensor could achieve. This falls gradually as the sensitivity is raised and the effects of noise and noise reduction take their toll, to around 3000 l/ph at ISO 1600. Past this though things deteriorate more rapidly, to about 2600l/ph at ISO 6400 and just 2200 l/ph at ISO 25600.

Below we show 100% crops from our resolution chart at each ISO, with a black triangle indicating our estimate of limiting resolution. Multiply the numbers by 200 to give the resolution in lines/picture height.

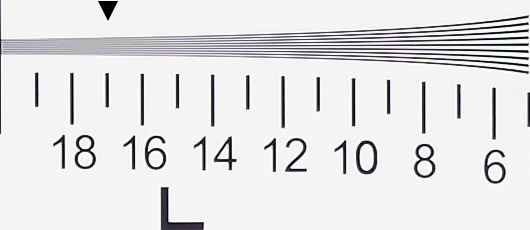

Olympus OM-D E-M5 Mark II resolution, ISO 100

Olympus OM-D E-M5 Mark II resolution, ISO 100

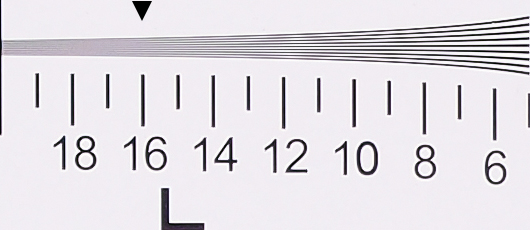

Olympus OM-D E-M5 Mark II resolution, ISO 200

Olympus OM-D E-M5 Mark II resolution, ISO 200

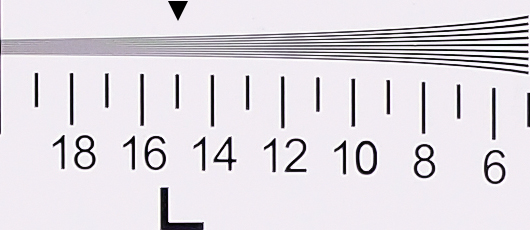

Olympus OM-D E-M5 Mark II resolution, ISO 400

Olympus OM-D E-M5 Mark II resolution, ISO 400

Olympus OM-D E-M5 Mark II resolution, ISO 800

Olympus OM-D E-M5 Mark II resolution, ISO 800

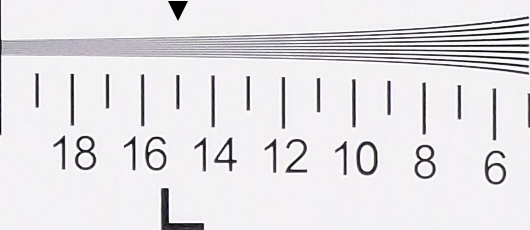

Olympus OM-D E-M5 Mark II resolution, ISO 1600

Olympus OM-D E-M5 Mark II resolution, ISO 1600

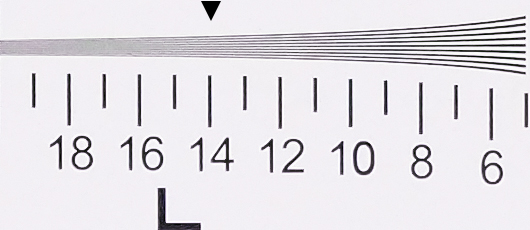

Olympus OM-D E-M5 Mark II resolution, ISO 3200

Olympus OM-D E-M5 Mark II resolution, ISO 3200

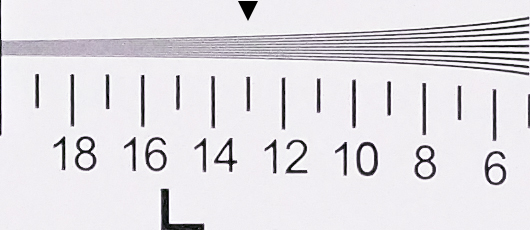

Olympus OM-D E-M5 Mark II resolution, ISO 6400

Olympus OM-D E-M5 Mark II resolution, ISO 6400

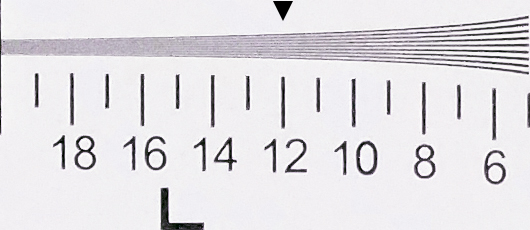

Olympus OM-D E-M5 Mark II resolution, ISO 12800

Olympus OM-D E-M5 Mark II resolution, ISO 12800

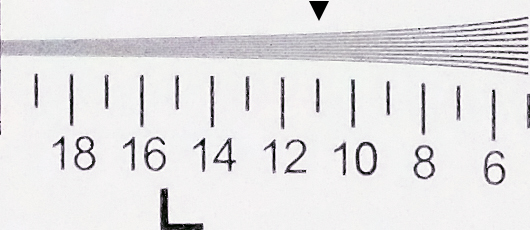

Olympus OM-D E-M5 Mark II resolution, ISO 25600

Olympus OM-D E-M5 Mark II resolution, ISO 25600

Resolution: 40MP mode

Switch the OM-D E-M5 Mark II to 40MP composite mode, and the resolution can surpass 4000 l/ph at ISO 100, which is pretty impressive. Because this is a multi-shot mode, noise has less of an impact as sensitivity is increased, with resolution dropping to around 3600 l/ph at ISO 1600. This is still higher than the camera can manage at low ISO in standard 16MP mode.

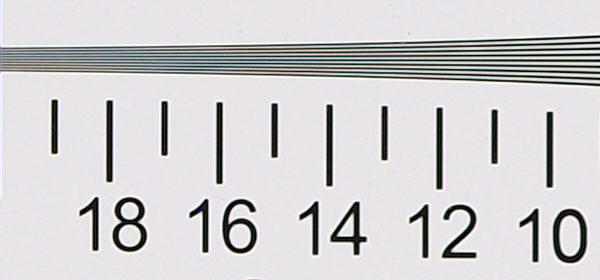

Olympus OM-D E-M5 Mark II resolution, 40MP mode, ISO200

Olympus OM-D E-M5 Mark II resolution, 40MP mode, ISO 200

Olympus OM-D E-M5 Mark II resolution, 40MP mode, ISO400

Olympus OM-D E-M5 Mark II resolution, 40MP mode, ISO 400

Olympus OM-D E-M5 Mark II resolution, 40MP mode, ISO800

Olympus OM-D E-M5 Mark II resolution, 40MP mode, ISO 800

Olympus OM-D E-M5 Mark II resolution, 40MP mode, ISO 1600

Olympus OM-D E-M5 Mark II resolution, 40MP mode, ISO 1600
